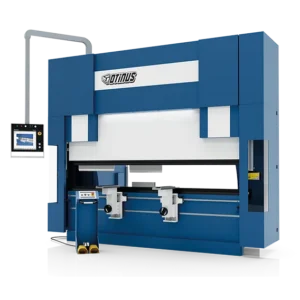

Otinus CNC press brake with touchscreen control panel, dual backgauge system, and robust steel frame, isolated on a transparent background.
available immediately

Efficient and uncompromising

Designed for production facilities operating under constant load, the PRO press brake is a solution for intensive, multi-shift operation. Its reinforced structure, advanced control systems, and industrial-grade components ensure stable, uninterrupted performance even at high production volumes. This is a machine built to deliver ambitious results—where maximum efficiency, repeatability, and full process control around the clock truly matter.
Video preview
×
Hydraulic WILA tool clamping system in a PRO press brake, showing the bending beam with a precise, fast tool change mechanism.

WILA tool clamping

The hydraulic WILA tool clamping system enables fast, tool-free changeovers, eliminating production downtime and reducing the risk of assembly errors. Precise and stable tool positioning guarantees repeatable bends even during intensive, multi-shift operation. The result? Shorter setup times, greater flexibility, and tangible operational savings.
Manual backgauge adjustment system on a press brake with handwheel and linear guide, enabling precise positioning of sheet metal during bending operations.

Crowning (deflection compensation)

An advanced, automatic crowning system ensures perfect bend linearity along the entire beam length. Regardless of material thickness, length, or type, every edge remains perfectly straight. This technology eliminates rework, reduces scrap, and improves part quality from the very first bend.
Interior view of an Otinus CNC press brake showing the motorized backgauge system with dual axes, linear guides, and safety light curtains for precise sheet metal positioning.

Configuration up to 8+1 axes

The option to configure the machine with up to 8+1 axes opens the door to producing the most complex parts. Full motion automation, precise axis synchronization, and advanced process control enable faster, more accurate bending without compromise. A solution for companies looking to scale production and stay ahead technologically.
Otinus hydraulic press brake with CNC control panel, front safety light curtain, and adjustable backgauge, designed for precise and safe sheet metal bending.

Operator safety

The integrated Fiessler AKAS safety system, complemented by side guards and emergency stops, provides the highest level of operator protection. Intelligent monitoring of the working zone allows maximum operating speed without sacrificing safety. The result: operator peace of mind, standards compliance, and uninterrupted production.
PRO press brake with independent Y1 and Y2 axis control, front view of the machine highlighting the bending beam axes that ensure precise synchronization and bending accuracy.

Independent Y1 and Y2 axis control

Independent drives for the Y1 and Y2 axes, equipped with high-precision linear scales, ensure full control and perfect beam synchronization. This translates into exceptional bending accuracy—even with uneven loads or long workpieces. A technology that works quietly in the background, yet delivers visible results on every finished part.
Integrated LED lighting mounted on the Otinus press brake frame, providing clear illumination of the bending area for improved visibility and operator comfort.

Integrated LED lighting

Modern LED lighting in the working area provides excellent visibility of the workpiece and tools—regardless of shop-floor conditions. Better visibility means higher precision, fewer errors, and greater operator comfort, especially during long shifts.
Front material supports of the PRO press brake with adjustment on linear guides, designed to stabilize large sheet metal workpieces.

Front supports

Stable front supports mounted on linear guides significantly simplify the handling of large and heavy sheets. They ensure reliable material support and smooth operation. For even greater automation, follow-up supports are available—solutions that genuinely reduce operator workload and speed up serial production.
DELEM control panel with a 3D touchscreen on the PRO press brake, displaying a sheet metal bending process simulation.

Advanced DELEM controls

Modern DELEM controls with an intuitive 3D interface offer full control over the bending process. Real-time simulations, automatic bend sequence calculation, and part visualization before production minimize errors and reduce programming time. Precision, convenience, and cutting-edge technology—combined in one control panel.
Foot control panel of the PRO press brake with a dual safety pedal, enabling precise hands-free control of the bending cycle.

Foot control panel

An ergonomic foot control panel with a dual pedal and function buttons allows the operator to maintain full control of the bending process without taking hands off the workpiece. This solution improves comfort, enhances safety, and enables faster operation—exactly what modern production demands.

General specifications

Press force

400–6000 kN
Bending length

1,250 – 6,100 mm
Working speed

7 – 10 mm/s
Approach speed

80 – 160 mm/s
Stroke

215 – 360 mm
Available controls

Delem DA-66T, DA-69T
Front supports

on linear guides, manually adjustable
Tool clamping system

Promecam or WILA
Number of backgauge fingers

from 2 to 4 (depending on configuration)
Backgauge finger adjustment

yes, manual
Frame reinforcement up to 200 T/m

yes
Safety system

Fiessler AKAS-2
Box bending

yes
Machine control

operator panel, foot switch
